JC-4s Automatic Antenna Tuner

1KW DUAL MEMORY AUTO ANTENNA COUPLER



 Highlights :



- 1Kwatt PEP (SSB) max power for 25 meter long antennas (1,6 – 30 Mhz)
- 50 memories in each antenna output (“A” and “B”)
- Antenna switching without retuning
- “tuned” start up at the last used frequency
- Memory storage without internal batteries

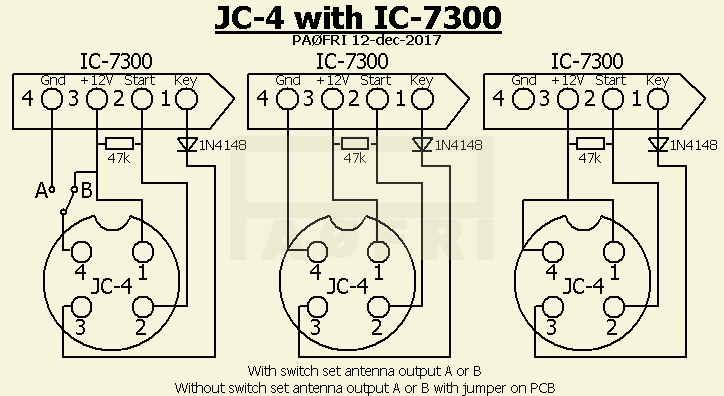

- Possible to connect with command from most Icom, Kenwood & Alinco transceivers
- Possible to connect with any HF radio with the provided control box
- 6pF output capacitor steps
- Possible to connect a dipole direct to “A” & “B”
- Grounding of the not used antenna output while operating the other
- Grounding of both antenna outputs if the 12v DC supply is cut
- Improved design of the capacitor board (version S)
- Improved input SWR during the tuning process (version S)
- Improved security : When too much RF power during tuning process, Tuning will be interrupted (version S)

ALL OUR PRODUCTS ARE HANDMADE. NO AUTOMATIC PRODUCTION LINES !!



Price :  € 599,00



Please download the complete manual version 9 from this website. This will give you many answers to your questions. What will you get if you order: JC-4s, Small control Box, 4 pin connector, Manual and good packing.

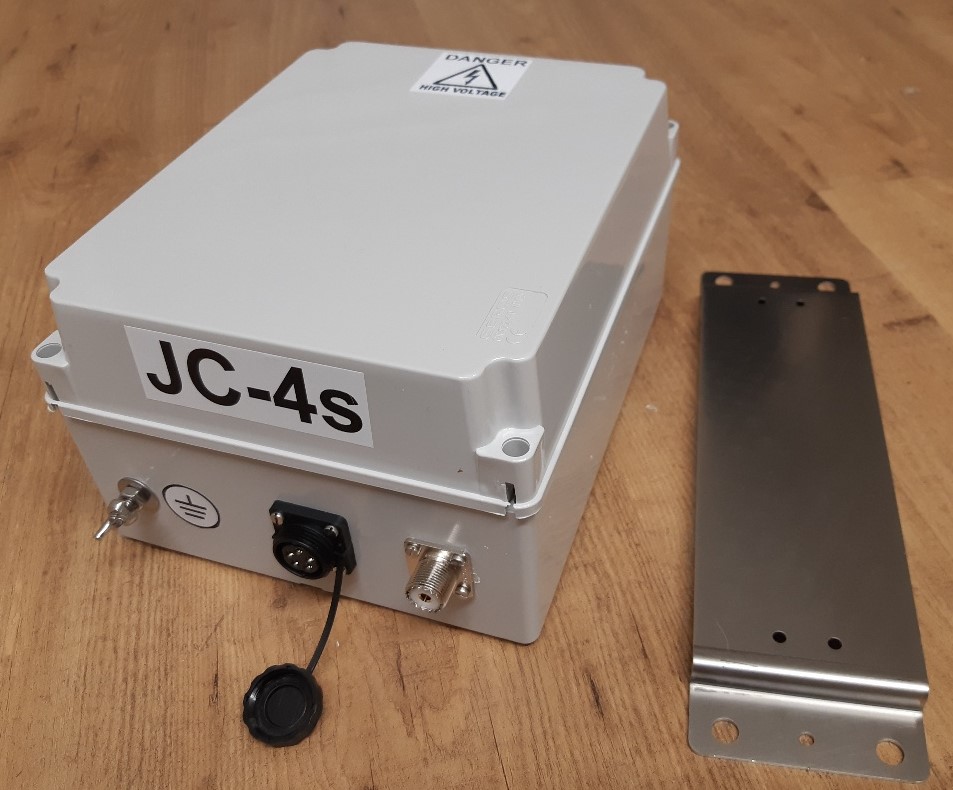

Heredown you see the total box wich is UV protected agains sunlight

 JC-4-box1



Circuit type

ReversibleLorΠ

Input capacitance step

25pF

Output capacitance step

6pF

Inductance step

0.08μΗ

Total capacitance

3400pF

Total inductance

80μΗ

UsedRELAYS

32 X OMRON

Operating frequencies

1.6 to 30 ΜΗΖ

Maximum power for 25 meters antenna

1000W SSB ( 300W on AM, FM, CW, RTTY & all other carrier modes FOR A SHORT TIME!!! )

ATMEL controller

ΑΤ89C4051 - 24P

Communication with RELAYS and memories

I2C

Maximum tuning power

50 W (carrier)

Typical tuning time

2 – 3 sec.

Maximum tuning time

Memory tune time

6 sec.

0.02 sec

D.C. supply voltage

11 – 16 V

Maximum supply current

1.2A

Typical VSWR ( in the tuner input )

< 1.2 : 1

Maximum VSWR (in the tuner input)

1.6 : 1

Protection

Static discharge (NOT FOR THUNDER FALL!)

Dimensions ( without metal holder )

Weight



19.5 x 25 x 13.5 cm

2.5 Kg



 TUNING PROCEDURE USING THE STANDARD CONTROL BOX

- We set the jumper switch of the control box to antenna "Α" or "Β".
- We set the transceiver in AM, FM, RTTY or CW mode and we adjust the output carrier power
somewhere in between 10 and 20 watts.
- We push the button on the control box until the red LED is lit
- We activate PTT keeping the transceiver transmitting some power.
- We wait until the LED goes off and then we stop transmitting. During this process you can hear
all relays fast clicking if you are nearby the coupler. If the LED goes off the “tune process” is finished.

(The SWR must be 1:1) If you push the tune button of the control box and if you do NOT activate your transmitter the led will go off after a few seconds.(time out)

If the LED quickly turns on and off at the end of the tuning procedure, the tuning procedure has failed!

We set the switch of the control box to antenna "Α" or "Β". We set the transceiver in AM,

FM , RTTY or CW mode and we adjust the output carrier power somewhere in between 10

and 20 watts.  We activate PTT keeping the transceiver transmitting. We push the button on

the control box until the red LED is lit. We wait until the LED goes off and then we stop transmitting.

With this same control box you can erease the memories if wanted. The design inside is very

simple so you can reproduce it easy to your own demands and quality.

 JC-4-box2

 JC-4-box3

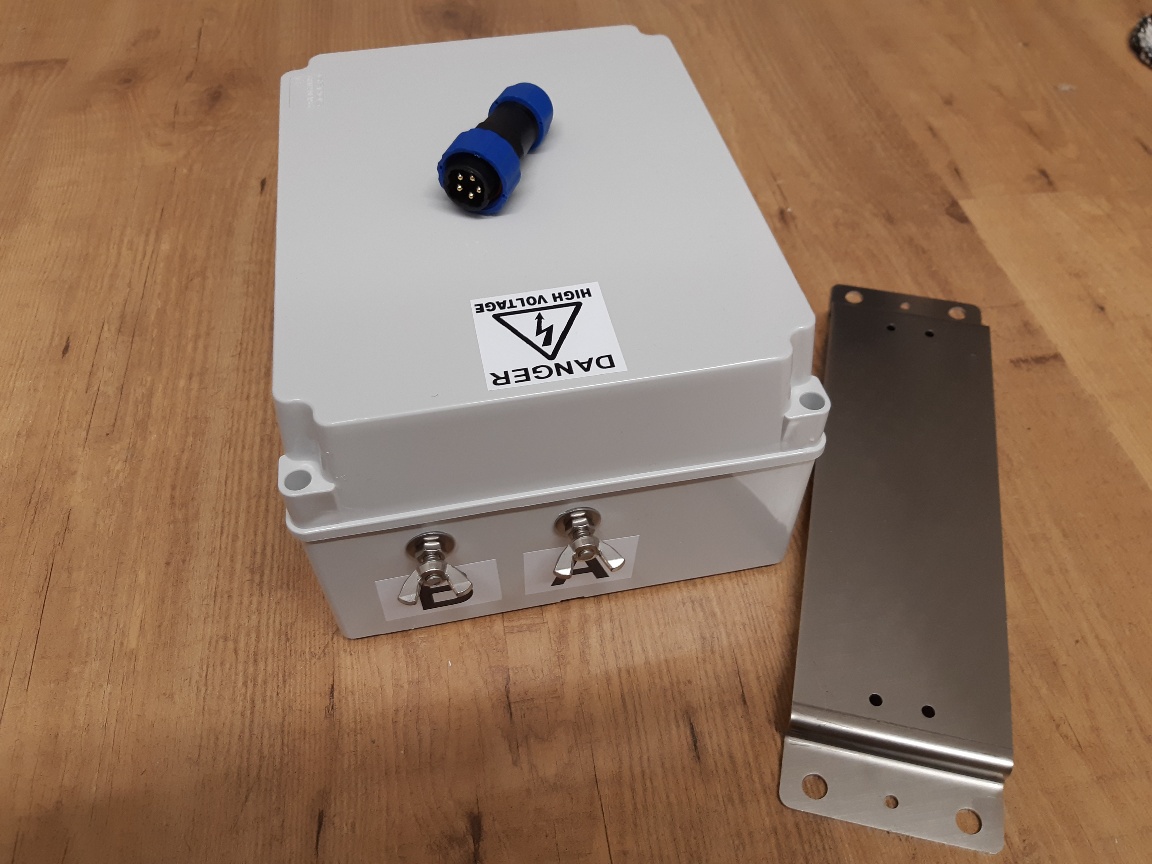

 In 2017 we changed production of the mounting device to stainless steel : (not shown on picture)JC-4-box5 down

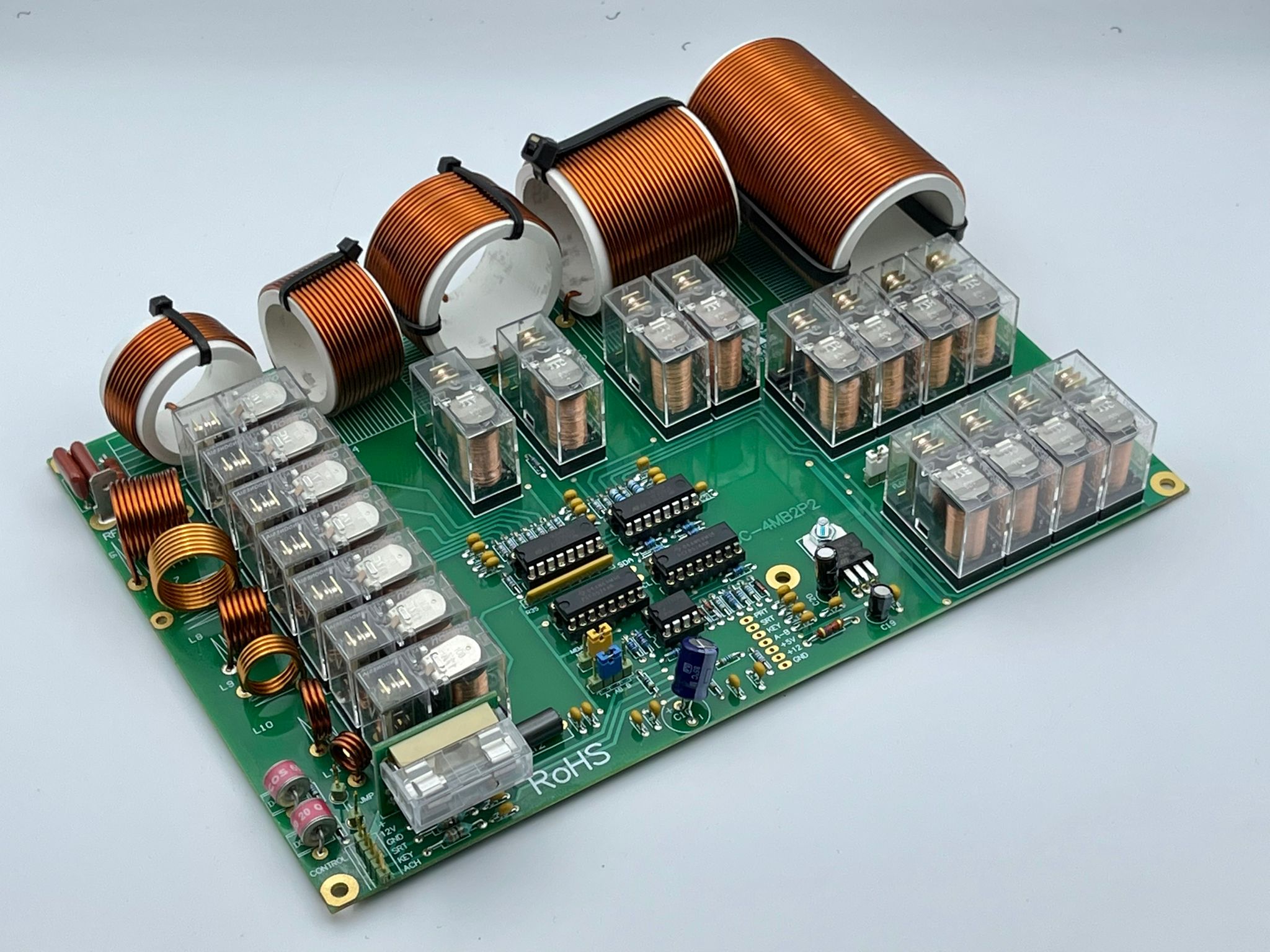

jc-4 no case1

jc-4 no case3

jc-4 no case4

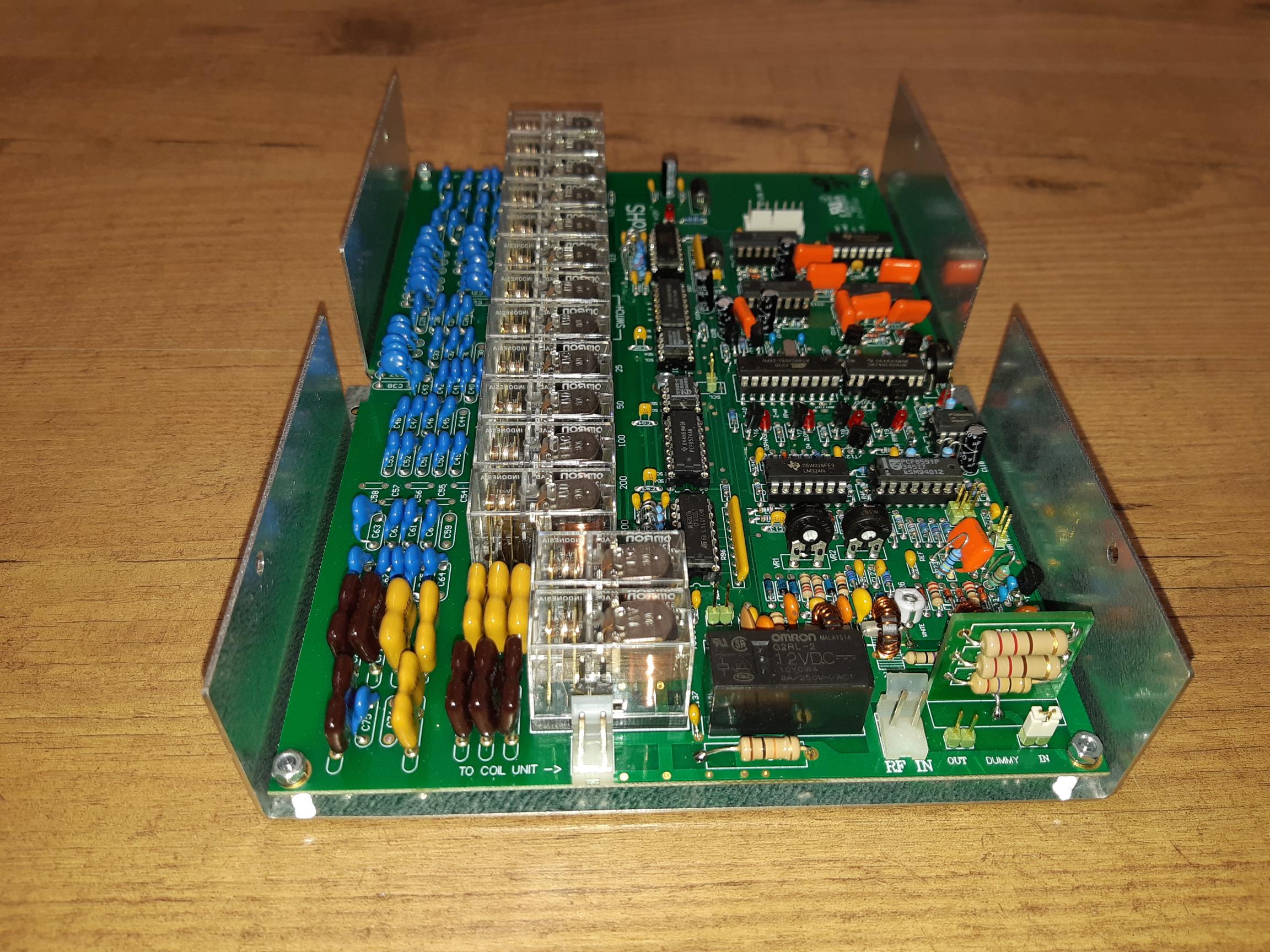

jc-4 down1 total

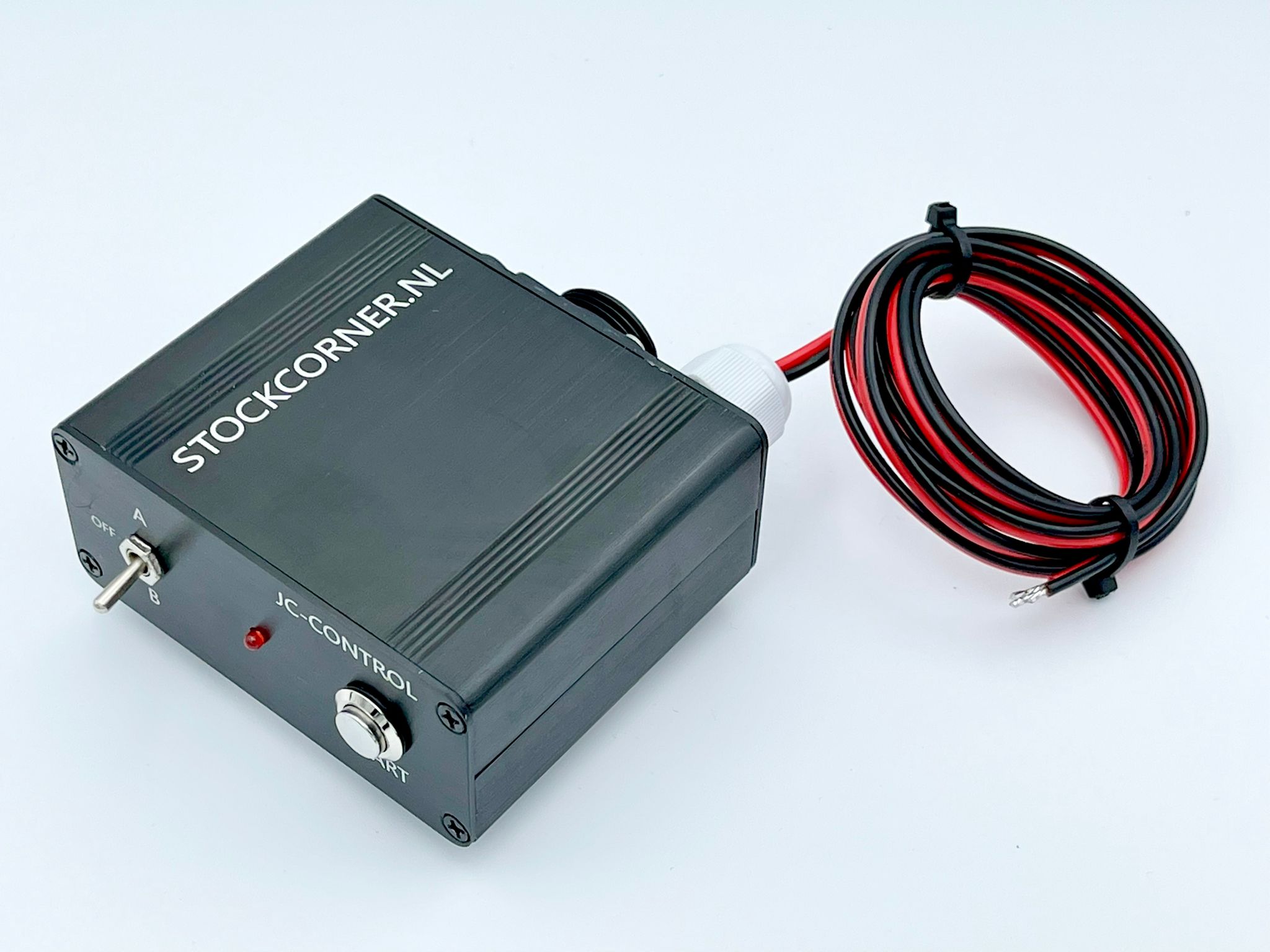

Small control box provided and 1 x 4 pin connector

jc-4-control-box

You can see that the design is very simple. You can easy copy this and use your own design. Not any secret how we made it.

jc-4-control-box-inside1

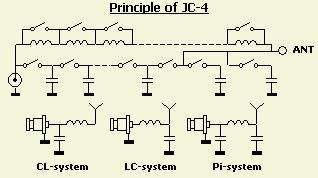

 jc-4 principle s
